Perfect Doorphone choice for daily life

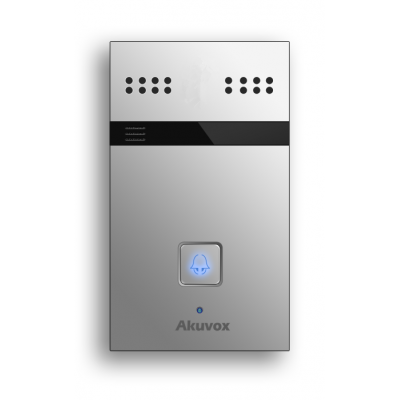

Akuvox's Audio Doorphone R23P is an open, non-proprietary IP-based door station for two-way communication and

remote entry control. It is a perfect complement to any SIP system and offers new possibilities to effectively

control entry to your premises.

At a Glance

• Vandal resistant body, with a flush button

• PoE (IEEE802.3af, Power-over-Ethernet);

• Two-way audio communication over IP networks with Echo Cancel feature;

• Complies with SIP standard for easy integration in every SIP capable PBXes;

Physical & Power

• Body material: all-aluminum

• Button: 1 call button

• Output Relay: 2 output relays for door opener

• 802.3af Power-over-Ethernet

• 12V DC connector (if not using PoE)

• Power consumption: less than 12W

• Water-proof & Dust-proof: IP65

• Installation: Wall-mounted

• Dimension: 190x110x33mm

SIP Endpoint

• SIP v1(RFC2543), SIP v2(RFC3261)

• Audio codecs: G.711a, G.711μ, G.722, G.729

• Speech Quality: 7kHz Audio

• Echo Cancellation

• Voice Activation Detection

• Comfort Noise Generator

• Door opener via DTMF post-dial

Networking

• 1x10/100 Mbps Ethernet port

• Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP

Application Scenarios

• Office door phone with on-site or hosted IP-PBX

• Remote site entry over Internet

• Villa intercom with door access control
